BECE Basic Technology 2013 Paper 2 Past Questions

Question 1

In a lead acid battery energy is converted from ______ to ______

A.chemical, electrical
B.chemical, solar
C.electrical, chemical
D.electrical, light
E.electrical, mechanical

Objective

Question 2

Which of the following is NOT a major source of energy?

A.Electricity
B.Nuclear
C.Sun
D.Water
E.Wind

Objective

Question 3

Energy from the sun can be converted into heat energy using a/an

A.photovoltaic cell
B.solar collector
C.thermocouple
D.transformer
E.windfall

Objective

Question 4

The component that engages and disengages drive in a motor vehicle is called

A.brake
B.clutch
C.engine
D.gear
E.radiator

Objective

Question 5

The power generated by the engine is transmitted to the rear wheels through

A.camshaft
B.connecting rod
C.crankshaft
D.gear box
E.propeller shaft

Objective

Question 6

The instrument used in measuring air pressure is called a/an

A.barometer
B.hydrometer
C.hygrometer
D.manonmeter
E.thermometer

Objective

Question 7

Burning of petrol in the engine of a motor vehicle generates ______ energy.

A.chemical
B.heat
C.nuclear
D.solar
E.sound

Objective

Question 8

Which material serves as fuel during forging process in furnace?

A.Charcoal
B.Coke
C.Gas
D.Kerosene
E.Petrol

Objective

Question 9

Energy reaching the Earth from the sun is known as

A.kinetic
B.nuclear
C.potential
D.solar
E.wind

Objective

Question 10

A battery converts ______ energy to ______

A.chemical, electrical
B.electrical, heat
C.electrical, mechanical
D.heat, solar
E.sound, mechanical

Objective

Question 11

Air pressure can be expressed mathematically as

A.Force/area
B.Mass/area
C.Volume/area
D.Force × Area
E.Mass × Area

Objective

Question 12

Which of the following system is used in driving the grinder in the common grinding machine?

A.belt
B.chain
C.gear
D.gearing
E.sproket

Objective

Question 13

The mixture of air-fuel ratio in an automobile is ignited by

A.capacitor
B.plug spanner
C.semi-conductor
D.spark plug
E.transistor

Objective

Question 14

The following appliances converts electrical energy to heat energy EXCEPT

A.electric cooker
B.electric iron
C.electric kettle
D.power generating set
E.water heater

Objective

Question 15

A boy moving down the hill possesses ______ energy.

A.heat
B.kinetic
C.mechanical
D.nuclear
E.potential

Objective

Question 16

Which of the following is an advantage of gear drive over belt drive?

A.cheaper
B.difficult to connect
C.durable
D.low tensile strength
E.slip easily

Objective

Question 17

Which of the following causes retardation when applied?

A.belts
B.brakes
C.chains
D.gears
E.pulley

Objective

Question 18

The measure of oil resistance to flow is called

A.friction
B.oxidation
C.pour point
D.reduction
E.viscosity

Objective

Question 19

When two gears mesh, one is the drive while the other is termed the

A.chain
B.driven
C.idler
D.pinion
E.shaft

Objective

Question 20

The movement of piston in an engine is an example of ______ motion.

A.Circular
B.Linear
C.Oscillatory
D.Rotational
E.Translational

Objective

Question 21

In pumping a car tube, the air pressure is forced into the tube through a/an

A.hose
B.pressure guage
C.puncture
D.rim
E.valve

Objective

Question 22

Constant lubrication of a machine is to prevent

A.corrosion
B.exhausting
C.high speed
D.low speed
E.sulphation

Objective

Question 23

The regular servicing carried out on an equipment is known as ______ maintenance.

A.corrective
B.predictive
C.pre-service
D.preventive
E.routine

Objective

Question 24

Maintenance is carried out in order to

A.prevent the break down of a component
B.prevent the component from being under utilized
C.prolong the service life of component
D.reduce the period of usage of a component
E.save cost of the component from being repaired

Objective

Question 25

Which of the following is NOT a way of maintaining battery?

A.checking and cleaning the terminal
B.checking the gab with a feeler guage
C.checking the level of the acid electrolyte
D.checking the strength of the acid electrolyte
E.refilling the acid

Objective

Question 26

The repair work carried out when machine has broken down is ______

A.corrective
B.major
C.predictive
D.preventive
E.routine

Objective

Question 27

The diagram below is used for ______ and ______ during construction.

A.lifting, rubbing
B.plastering, filling
C.plumbing, cutting
D.setting, rubbing
E.socking, rendering

Objective

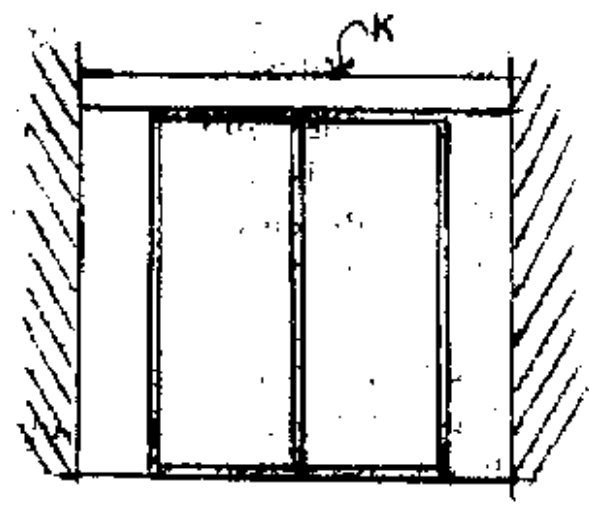

Question 28

What is the part labelled K in the sketch below?

A.Brick
B.Door
C.Jamb
D.Lintel
E.Sill

Objective

Question 29

The concrete floor slab shown below is built on

A.Cavity
B.Damping course
C.Hardcore
D.Oversite
E.Screed

Objective

Question 30

The suitable foundation type of a non-flat area is

A.pad
B.rift
C.rile
D.step
E.strip

Objective

Question 31

The openings that primarily allows cross ventillation in building is a/an

A.air brick
B.cavity
C.door
D.duct
E.window

Objective

Question 32

The symbol below represents

A.air extractor
B.ceiling fan
C.cooker unit
D.going
E.switch over box

Objective

Question 33

Which of these is used for setting out of a building foundation on site?

A.Axes
B.Builder square
C.Dumper
D.Pallet
E.Shovel

Objective

Question 34

Which of these is NOT a type of foundation?

A.Pad
B.Pile
C.Raft
D.Rift
E.Step

Objective

Question 35

Removal of top vegetable soil on site is referred to as

A.clearing
B.digging
C.dredging
D.excavation
E.trenching

Objective

Question 36

Which of the following machines is NOT used for mixing concrete?

A.Holding mixer
B.Non-tilling drum
C.Pay loader
D.Tilting Drum
E.Transmit

Objective

Question 37

Mixed concrete can be transported by the following means EXCEPT

A.crane
B.dredger
C.dumper
D.head pan
E.wheel barrow

Objective

Question 38

The following are roof materials EXCEPT

A.aluminium
B.asbestos
C.clay
D.granolithic
E.zinc

Objective

Question 39

The roof shown below is

A.gable
B.hip
C.mansard
D.monitor
E.shed

Objective

Question 40

The combination of cement, water and sand in building construction is

A.adhesive
B.aggregate
C.lime
D.mixture
E.mortar

Objective

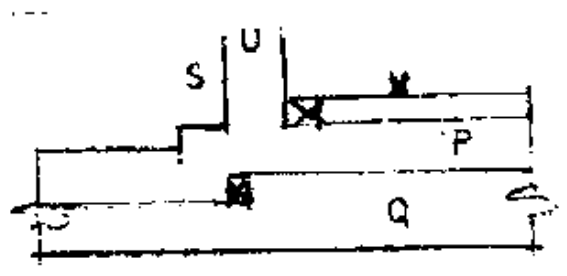

Question 41

Identify concrete slab in the foundation sectional details shown below.

A.P
B.Q
C.S
D.U
E.V

Objective

Question 42

Use the building plan below to answer questions 42 and 43.

The part labelled Q is a

A.door
B.lintel
C.wardrobe
D.window
E.work top

Objective

Question 43

Use the building plan below to answer questions 42 and 43.

What is the part labelled A?

A.Air vent
B.Lintel
C.Window
D.Workshop
E.Zeal

Objective

Question 44

Which of the following makes an electronic device function?

A.Dampness of Circuit
B.Free flow of electrons
C.Generation of impurities
D.High temperature
E.Open circuit

Objective

Question 45

Screw drivers are used in electrical installation to

A.cut cables
B.draw wires
C.drive in screws
D.make holes
E.twist cables

Objective

Question 46

Which of the following is NOT a tool used in electrical wiring?

A.Anvil
B.Hammer
C.Knife
D.Plier
E.Screwdriver

Objective

Question 47

High voltages are reduced to domestic use by a/an ______ transformer

A.auto
B.current
C.step down
D.step up
E.voltage

Objective

Question 48

The third element in a triode is

A.anode
B.cathode
C.emitter
D.grid
E.iron

Objective

Question 49

Which of these is NOT a board used in electronics?

A.bread
B.chip
C.perf
D.printed circuit
E.vero

Objective

Question 50

The path in which current flows to and from a battery is

A.circuit board
B.circuit
C.current
D.electron beam
E.integrated circuit

Objective
