WAEC Mathematics 2004 Past Questions

(a) Solve \(\frac{1}{81^{(x - 2)}} = 27^{(1 - x)}\)

(b) Simplify \(\frac{5}{\sqrt{7} - \sqrt{3}} + \frac{1}{\sqrt{7} + \sqrt{3}}\), leaving your answer in surd form.

(a) In the simultaneous equations : \(px + qy = 5 ; qx + py = -10\); p and q are constants. If x = 1 and y = -2 is a solution of the equations, find p and q.

(b) Solve : \(\frac{4r - 3}{6r + 1} = \frac{2r - 1}{3r + 4}\).

(a) AB is a chord of a circle centre O. If |AB| = 24.2 cm and the perimeter of \(\Delta\) AOB is 52.2 cm, calculate < AOB, correct to the nearest degree.

(b) A rectangular tank 60cm by 80cm by 100cm is half filled with water. How many litres of water is it holding?

(a) The sides of an isosceles triangle triangle are in the ratio \(7 : 5 : 7\). Calculate, correct to the nearest degree, the angle included between the equal sides.

(b) The sum of the interior angles of a regular polygon is 1440°. Calculate : (i) the number of sides ; (ii) the size of one exterior angle of the polygon.

The table shows the marks scored by a group of students in a class test.

(a)(i) Calculate the mean mark ; (ii) Find the median.

(b) If the information were to be represented in a pie chart, what would be the sectorial angle for the mark 2?

(a) Simplify : \((\frac{x^{2}}{2} - x + \frac{1}{2})(\frac{1}{x - 1})\)

(b) A point P is 40km from Q on a bearing 061°. Calculate, correct to one decimal place, the distance of P to (i) north of Q ; (ii) east of Q.

(c) A man left N5,720 to be shared among his son and three daughters. Each daughter's share was \(\frac{3}{4}\) of the son's share. How much did the son receive?

(a) The angles of depression of the top and bottom of a building are 51° and 62° respectively from the top of a tower 72m high. The base of the building is on the same horizontal level as the foot of the tower. Calculate the height of the building correct to 2 significant figures.

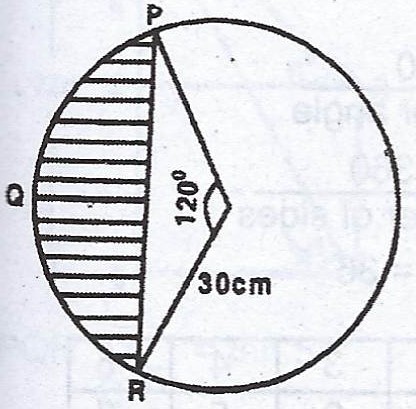

(b)   In the diagram, PR is a chord of the circle centre O and radius 30cm, < POR = 120°. Calculate correct to three significant figures : (i) the length of chord PR ; (ii) the length of arc PQR ; (iii) the perimeter of the shaded portion. (Take \(\pi = 3.142\)).

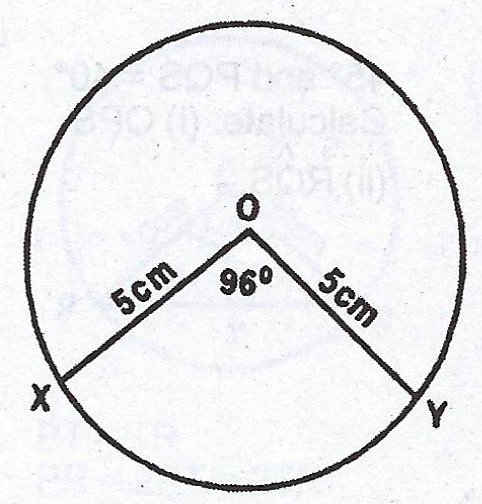

(a) In the diagram, XY is a chord of a circle of radius 5cm. The chord subtends an angle 96° at the centre. Calculate, correct to three significant figures, the area of the minor segment cut-off. (Take \(\pi = \frac{22}{7}\)).

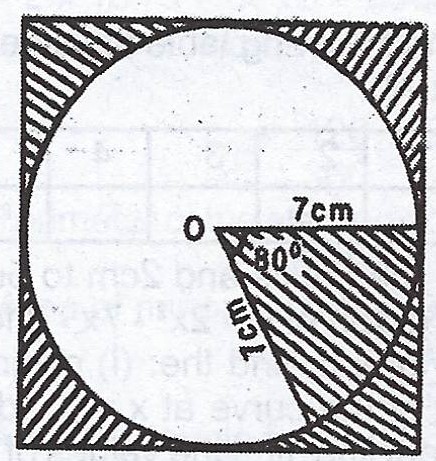

(b)   The figure shows a circle inscribed in a square. If a portion of the circle is shaded with some portions of the square, calculate the total area of the shaded portions. [Take \(\pi = \frac{22}{7}\)].

Using a ruler and a pair of compasses only,

(a) Construct : (i) \(\Delta PQR\) such that /PQ/ = 8cm, /PR/ = 7cm and < QPR = 105°. (ii) locus \(L_{1}\) of points equidistant from P and Q. (iii) locus \(l_{2}\) of points equidistant Q and R.

(b)(i) Label the point T where \(l_{1}\) and \(l_{2}\) intersect ; (ii) With centre T and radius /TQ/, construct a circle \(l_{3}\). (iii) Complete quadrilateral PQSR such that /RS/ = /QS/ and /RQ/ = /TS/.

K(lat. 60°N, long. 50°W) is a point on the eart's surface. L is another point due East of K and the third point N is due North of K. The distance KL is 3520km and KN is 10951km.

(a) Calculate: (i) The longitude of L ; (ii) The latitude of N. (Take \(\pi = \frac{22}{7}\) and the radius of the earth = 6400km).

(b) A man was allowed 20% of his income as tax free. He then paid 25 kobo in the naira on the remainder. If he paid N1,200.00 as tax, calculate his total income.

The frequency distribution shows tha marks of 100 students in a Mathematics test.

(a) Draw cumulative frequency curve for the distribution .

(b) Use your curve to estimate : (i) the median ; (ii) the lower quartile ; (iii) the 60th percentile.

(a) Simplify : \(\sqrt{1001_{two}}\), leaving your answer in base two.

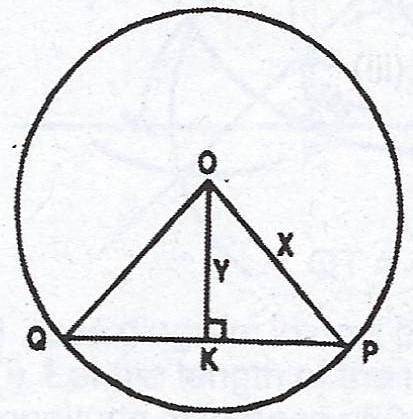

(b) In the diagram, O is the centre of the circle radius x. /PQ/ = z, /OK/ = y and < OKP = 90°. Find the value of z in terms of x and y.

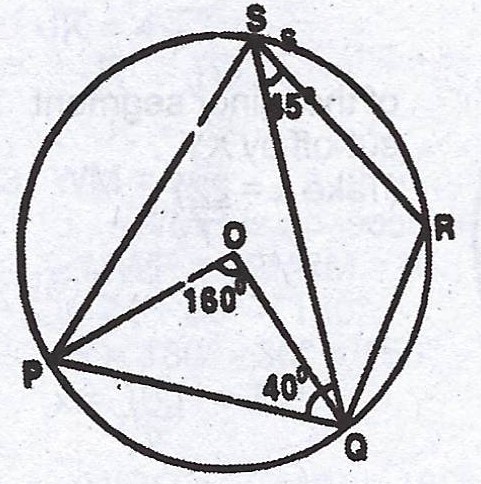

(c) In the diagram, P, Q, R and S are points of the circle centre O. \(\stackrel\frown{POQ} = 160°\), \(\stackrel\frown{QSR} = 45°\) and \(\stackrel\frown{PQS} = 40°\). Calculate, (i) < QPS ; (ii) < RQS.

(a)  Copy and complete the following table of values for the relation \(y = 2x^{2} - 7x - 3\).

(b) Using 2 cm to 1 unit on the x- axis and 2 cm to 5 units on the y- axis, draw the graph of \(y = 2x^{2} - 7x - 3\) for \(-2 \leq x \leq 5\).

(c) From your graph, find the : (i) minimum value of y ;

                                                 (ii) gradient of the curve at x = 1.

(d) By drawing a suitable straight line, find the values of x for which \(2x^{2} - 7x - 5 = x + 4\).
