Question 1
The force between the molecules of a liquid in contact with that of a solid is
Objective
WAEC Physics 2002 Past Questions
Practice each question, then open it to see the full details.
Question 2
A reservoir is filled with a liquid of density 2000kgm-3. Calculate the depth at which the pressure in the liquid will equal to 9100Nm-2 [g = 10ms-2]
Objective
Question 3
A solid weight 45N and 15N respectively in air and water. Determine the relative density of the solid
Objective
Question 4
One common characteristics of solids, liquids and gasses is that
Objective
Question 5
A boy travels 8 km eastward to a point B and then 6km northward to another point C. Determine the difference between the magnitude of displacement of the boy and distance travelled by him
Objective
Question 6
The magnitude of the force required to make an object of mass, m move with speed, v in a circular of radius r is given by the expression
Objective
Question 7
A man was moving round a circular path continuously for 4 minutes and covered the following distances in the times stated :
Distance (in metres) 200, 400, 600, 300
Time(in minutes) : 1, 2, 3, 4 respectively. Which of the following statements is correct about the motion of the man?
Distance (in metres) 200, 400, 600, 300
Time(in minutes) : 1, 2, 3, 4 respectively. Which of the following statements is correct about the motion of the man?
Objective
Question 8
A car takes off from rest and covers a distance of 80m on a straight road in 10s. Calculate the magnitude of its acceleration
Objective
Question 9
An object is released from rest at a height of 25m. Calculate the time it takes to fall to the ground. [g = 10ms-2]
Objective
Question 10
An object is acted upon by a system of parallel forces causing the object to be in static equilibrium. Which of the following statements is not correct?
Objective
Question 11

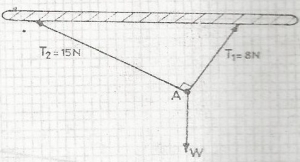

An object A is held in equilibrium as illustrated in the diagram above. Using the data on the diagram determine the magnitude, W of the weight of
Objective
Question 12
A spiral spring of natural length 30.0cm and force constant of 20Nm-1 is compressed to 20.0cm. Calculate the energy stored in the spring
Objective
Question 13
In the diagram above, AB represents a uniform rod of length 1.50m which is in equilibrium on a pivot at P, If AP = 40cm, calculate the mass of the rod. [g = 10ms-2]
Objective
Question 14
Which of the following statements correctly defines quantitatively the work done by a force? the product of the force and the distance moved
Objective
Question 15
a load of mass120kg is raised vertically through a height of 2m in 30s by a machine whose efficiency is 100%. Calculate the power generated by the machine. [g = 10ms-2]
Objective
Question 16
A block and tackle system has 6 pulleys. If the efficiency of the machine is 60%, determine its mechanical advantages
Objective
Question 17
Which of the following actions will improve the efficiency of the pulley system?
Objective
Question 18
The ice and steam points of a certain thermometer are -20o and 100o respectively. Calculate the Celsius temperature temperature corresponding to 70o on the thermometer
Objective
Question 19
The silver coating on the inside of a vacuum flask reduces heat loss by
Objective
Question 20
Water of mass 120g at 50oC is added to 20og of water at 10oC and the mixture is well stirred. Calculate the temperature of the mixture. [Neglect heat losses to the surrounding]
Objective
Question 21
Calculate the energy required to vapourise 50g of water initially at 80oC.[specific heat capacity of water = 2260Jg-1K-1][specific latent heat of vaporisation of water = 2260Jg-1]
Objective
Question 22
What type of motion does the skin of a 'talking' drum perform when it is struck with a drum stick?
Objective
Question 23
A slinky spring fixed at one end is placed horizontally on a table. The free end is displaced parallel to the table and then released. The resultimg wavelength is
Objective
Question 24
A radio wave has a wavelength of 150m. If the velocity of radio waves is free spaces is 3 x 10\(^8\) ms\(^{-1}\), calculate the frequency of the radio wave
Objective
Question 25
In the wave equation y = Eo, sin(299t - \(\pi\)), Eo represents the
Objective
Question 26
The size of the hole of a pin hole camera is increased. The resultant image formed becomes
Objective
Question 27
The refractive index of a medium relative to air is 1.8. Calculate to the nearest degree, the critical angle for the medium
Objective
Question 28
A converging lens of focal length 15cm forms a virtual image at a point 10cm from the lens. Calculate the distance of the object from the lens
Objective
Question 29
In a compound microscope, the image formed by the objective lens is at a distance of 3.0cm from the eye lens. Calculate the focal length of the eye lens
Objective
Question 30
A pulse of a sound is transmitted from a ship and the reflection from the sea bed is recorded after 0.2s. Calculate the depth of the sea. [Take speed of sound in sea water = 1560ms-1]
Objective
Question 31
When two notes of nearly equal frequencies are sounded together, a periodic rise and fall in sound intensity can be heard. This phenomenon can be called
Objective
Question 32
Which of the following instruments is not a wind instrument?
Objective
Question 33
Which of the following actions will not cause an increase in the frequency of a vibrating string?
Objective
Question 34
Which of the following items can be used to compare the relative magnitudes of electric charges on two bodies?
Objective
Question 35
Three capacitors each of capacitance 18\(\mu F\) are connected in series. Calculate the effective capacitance of the capacitors
Objective
Question 36
Two spheres of masses 100kg and 90kg respectively have their centres separated by a distance of 1.0m. Calculate the magnitude of the force of attraction between them. [G = 6.70 x 10-11Nm-2kg-2]
Objective
Question 37
The magnitude of the gravitational attraction between the earth and a particle is 40N. If the mass of the particle is 4kg. Calculate the magnitude of the gravitational field intensity of the earth on the particle
Objective
Question 38
Local actions is normally prevented in a simple electric cell by
Objective
Question 39
The lead-acid accumulator consists of a
Objective
Question 40
Which of the following actions will not lead to an increase in the induced e.m.f. in a coil of wire rotating between the poles of a magnet? Increasing the
Objective
Question 41
A transformer has 400 turns and 200 turns in the primary and secondary windings respectively. If the current in the primary and secondary windings are 3A and 5A respectively. calculate the efficiency of the transformer?
Objective
Question 42
A freely-suspended magnet swinging in a horizontal plane comes to rest with its axis pointing approximately
Objective
Question 43

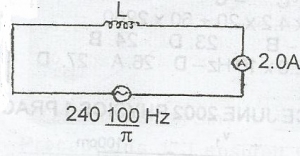

Calculate the inductance L, of the coil in the circuit diagram shown above
Objective
Question 44
In a model of the hydrogen atom, the energy levels Wn are given by the formula Wn = -\(\frac{R}{n^2}\), where n is an integer and R is a constant. Determine the energy released in the transition from n = 3 to n = 2.
Objective
Question 45
If a radioactive atom emits a beta particle, Its mass number
Objective
Question 46
Which of the following is usually used to cause fission in an atomic reactor?
Objective
Question 47
Which of the following materials is used to control the rate of neutron production in a nuclear reactor?
Objective
Question 48
A nuclide X is produced by bombarding a nitrogen(N) nucleus with an alpha(\alpha\) particle with the release of heavy hydrogen(D) nucleus as shown by the following nuclear equation, \(\alpha + ^{14}_{7}N \to ^p_qX + ^2_1D\). Determine the values of p and q in the equation
Objective
